Features
Scope of Application

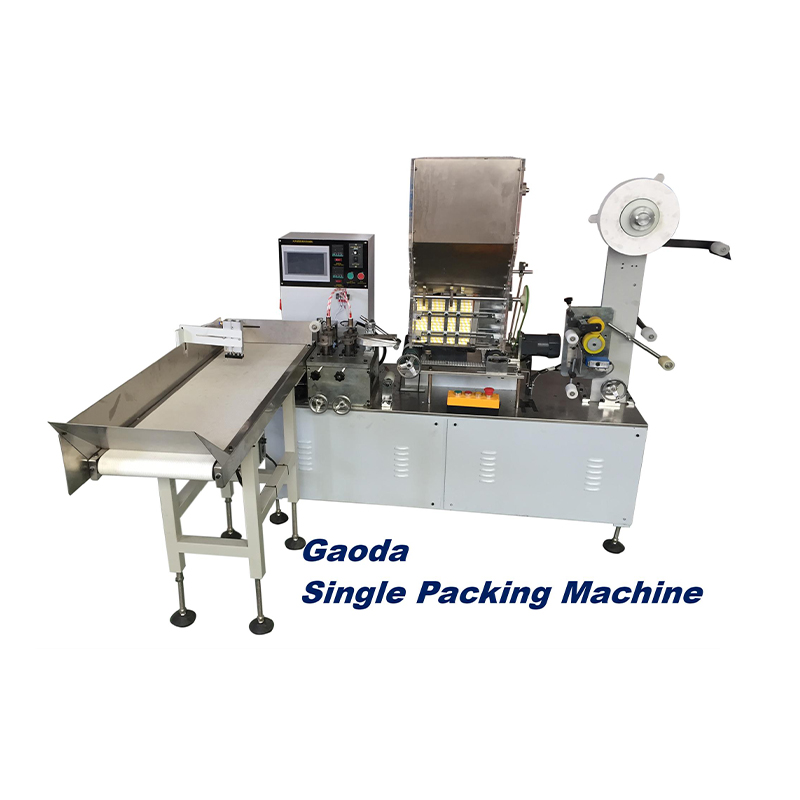

This machine is to pack individual drinking straw automatically, it contain motor driving, packing material release system, straw auto loader, straw packing, exit conveyor.
Features
◆Pack individual straw, automatic feeding and packing.
◆Speed adjustable.
◆ Machine controlled by 6 sets servo motor.
◆Change straw dimension, no need to change sealing wheel.
◆Automatic mark tracking function.
◆With two color printing device.
Specifications
|
Model |
AB-031S |
|
|
Drive motor |
5kw |
|
|
Speed |
200~600pcs/minute |
|
|
Seal |
Back side sealing |
|
|
Material |
BOPP or paper material |
|
|
Straw size |
Diameter |
Φ4～Φ12mm |
|
Length |
150～280mm |
|
|
Machine size and weight |
1600 × 800×1750mm 520kg |
|
Main electrical parts
|
Name |
Model |
Quantity |
Brand |
|
Touch screen |
TPC-7062HW |
1 |
Weinview |
|
PLC |
FPOR-C32T |
1 |
Panasonic |
|
Servo motor |
1300W |
1 |
Inovance |
|
Servo motor |
750W |
1 |
Inovance |
|
Servo motor |
400W |
4 |
Inovance |
|
Relay |
HHC68A-2Z |
3 |
Xinling |
|
Air switch |
C20/C16 |
1/3 |
CHNT |
|
Power supply |
LRS-50-24 |
1 |
Meanwell |
|
Valve |
|
1 |
Smuk |
|
Photoelectric switch |
CX-441 |
1 |
Panasonic |
Package Samples
 |
 |
